OTP-DC10 Power Corrd Wired Video Camera

Body worn cameras ( Hidden )

Features:


  • Miniature size video camera, simple to use in hidden task
  • High resolution and low power consumption CMOS sensor
  • Camera records with high resolution and consumes low power,
    CMOS camera captures images with crystal clear picture quality.

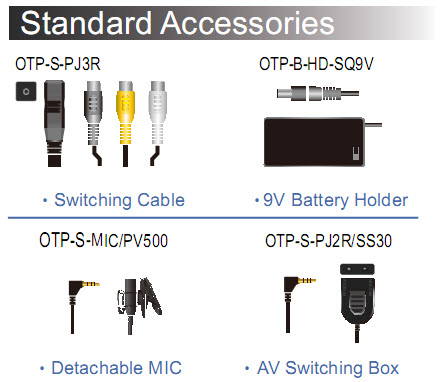

  • Complete power and cable accessories kit to use in various application
  • Standard audio and video analog output, compatible with common AV devices

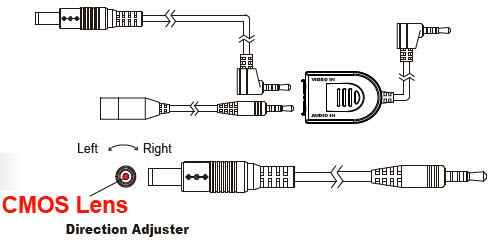

  • Direction Adjuster to adjust direction of captured image



Specifications:



VideoSignal NTSC/PAL
NumberofPixel 640x480
Resolution 480 TV Line
S/N ratio 38 dB
Image Sensor 1/18˝
Pixel size 2.5µm x 2.5µm
Sensitivity 4V(Lux•sec)
Video Output 1.0V p-p
Lens F/No 2.8
Focal Length 2.8mm
Depth of Field 1 m - 10m
Angle of View 60˚ ± 2˚
Power Supply Voltage DC 5V ± 0.5V
Camera Current 110mA
Dimension (Incld Lens) Ø5.6  x 46mm
Weight 12g
