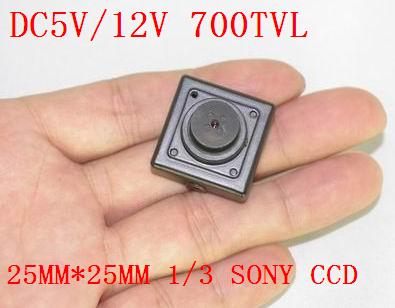

OTP-B004A micro surveillance camera(700tvl 25mm*25mm)

Body worn cameras ( Hidden ) » Wired High resolution mini camera

Features:

micro surveillance camera,700tvl CCD HD mini square camera(25mm*25mm) with DC5V or DC12V,
China Helmet Camera, CCD Bullet Camera with Horizontal Resolutions of 700TV Lines , Helmet Camera, Spy DVR,Helmet Camera,Spy Gadgets,Spy Camera,Portable DVR,Bullet Camera,Security Equipment,Cover DVR,Hidden DVR,Action Camera,Spy Pinhole,Manufacturer China.
micro surveillance camera,700tvl CCD HD mini square camera(25mm*25mm) with DC5V or DC12V

Specifications:

1. Total Pixels Number
NTSC: 1020(H) x 508(V) 520K
PAL: 1020(H) x 596(V) 610K

2. Effective Pixels Number
NTSC: 976(H) x 494(V) 480K
PAL: 976(H) x 582(V) 570K

3. Pick-up Device
1/3"960H EXview HAD CCD II (Sony)

4. Lens Fitted
Board,

5. Signal Process
Digital Signal Process

6. Scanning System
2: 1 Interlace

7. Sync System
Internal

8. Scanning Frequency
NTSC: 59.94Hz (VD)
PAL: 50Hz (VD)

9. Horizontal Resolution
700 TV Lines

10. S/N Ratio
More than 50dB (AGC Off )

11. Video Output
1.0Vpp composite (75R)

12. Min. Illumination
0.1Lux /30IRE, F2.0

13. Shutter Speed
NTSC: 1/60 ~ 1/100, 000 sec
PAL: 1/50 ~ 1/100, 000 sec

14. Power Consumption
DC12V, Max. 80mA
DC5V, Max. 150mA

15. Operating Temperature
-10C ~ 50C (Humidity: 0% RH ~ 80% RH)

16. Storage Temperature
-20C ~ 60C (Humidity: 0% RH ~ 85% RH)

17. Size: 25mm*25mm

18. OSD(Option)
SHUTTER: SHUT, SHUT+IRIS, IRIS /AGC: AGC: OFF, AGC
WHITE BALANCE: ATW, PUSH, USER1, USER2, ANTI CR, MANUAL, PUSH LOCK
BACKLIGHT: OFF, BLC, HLC
ATR: OFF, BLC, HLC
ATR: OFF, ON (Level adjustable)
NR: OFF, ON (Level adjustable)
DAYNIGHT: AUTO, COLOR, B/W
PICT ADJUST: MIRROR, BRIGHTNESS, CONTRAST, SHARPNESS, HUE, GAIN
MOTION DETECTION: OFF, ON (4 AREAS)
PRIVACY: OFF, ON (4 AREAS)
CAMERA ID: 0~9, A~Z, Special Character
