OTP-BU18 Button Camera Wired Covert CCD Camera Kit

Body worn cameras ( Hidden )

* Various Covert Capability
* Higher Resolution in 550 TV Lines
* Better Sensitivity at 0.2 Lux F2.0
* Able to work in the Day-Night
* Miniature Size Designed
* Built-In High Gain Microphone
* Instant cable Jack for Quick installation


Video System NTSC & PAL
Picture Element NTCS: (H)811x(V)508 / PAL: (H)795x(V)596
Resolution (H) 550 TV Lines
Image Sensor Interline 1/3 inch SONY SUPER HAD CCD
S/N Ratio More than 45 dB ( AGC off )
MIN Illumination  0.2Lux / 30 IRE @ F2.0
Video Output 1.0V p-p Composite at 75 ohm
Audio Output 2Vp-p(MAX) 10KHz ohms Impedance
MIC Sensitivity Yes
Lens 4.3 mm
Angle of View 78 Degree
Power Supply Voltage DC 5V
Power Supply Current 220 mA
Storage Temperature -10~50
Operation Tempareture -10~50
Dimension (Incld Lens)  25(W)x25(H)x18(T) mm
Weight 22 g

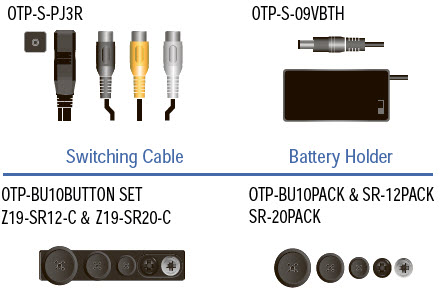

Standard Accessories
