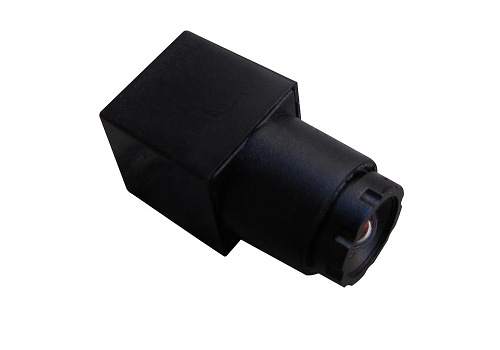

OTP-V9 0.008Lux 520TVL Mini CCTV Camera 90degree view angle with audio & house

Body worn cameras ( Hidden ) » Wired High resolution mini camera

Features:

It’s an ultra small high definition housed CCTV camera with excellent night vision.
Size is 10.5X11.5X22.5mm only, Weight is 4g! Ready housed camera is very convenient & easy
to install and conceal.Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.90degree wide view angle provides broad surveillance field.
Full TV system. Applicable worldwide.


Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

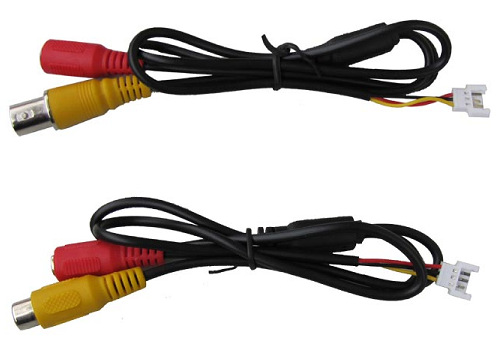

Ready AV/BNC cable and power supply cable. Just plug & play!

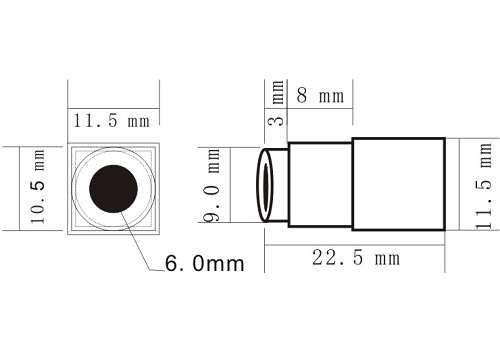

Outline Size



Contents
Mini camera X1; RCA/BNC cableX1;AC adapter X1

Specifications:

PICK UP ELEMENT
Single chip 1/3 CMOS
SYSTEM
NTSC
PAL
NUMBER OF PIXEL
NTSC:656(H)×492(V)
PAL:786(H)×576(V)
IMAGE SIGNAL PROCESS
Digital Signal Processing System
SENSOR DIMENSION
4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION
Approximately 520TV Lines
SCANNING SYSTEM
2:1 Interlace
SENSITIVITY
0.008Lux/F1.2
LENS & VIEW ANGLE
0.5mm F2.0 /90 °
S/N RATIO
52dB
ELECTRONIC SHUTTER
OUT (1/60 S TO 1/100000 S)
OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL
OUT
WHITE BALANCE CONTROL
OUT
BACK LIGHT COMPENSATION
OUT
VIDEO  OUT
1.0V p-p/75ohm
AUDIO OUT
1.0V p-p/1Kohm
SIZE  (L x W x H)
10.5x11.5x22.5mm
WEIGHT
4g
WORK CURRENT
70mA
POWER REQUIREMENT
DC 3.6V-24V
OPERATING TEMPERATURE
- 10° C ~ +50°C ,less than 90% RH
Connection
PIN1- Red DC5V  PIN2- Black GND  PIN3- Yellow VIDEO OUT PIN 4—White AUDIO OUT
