OTP-CM-SG20 INVISIBLE LENS! Ingenius concave front frame,placement for the video camera!

Body worn cameras ( Hidden )

 Features:

  • Miniature size video camera, simple to use in covert mission
  • High resolution and low power consumption CMOS sensor
  • Camera records with high resolution and consumes low power, CMOS camera captures images with crystal clear picture quality.

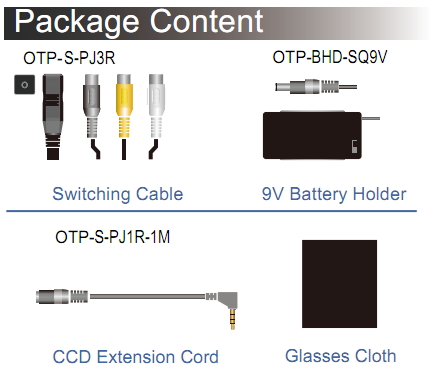

  • Complete power and cable accessories kit to use in various application
  • Standard audio and video analog output, compatible with common AV devices
  • Spectacle design, NTSC / PAL switch






Specifications:

Resolution

Video Resolution:480 TV Line
Pixel Size:2.5μm X 2.5μm
Digital Picture Resolution:640x480

CMOS Camera Module

Built-in image sensor:1/13" CMOS Sensor
Illumination Sensitivity:4V (Lux‧sec)
Lens F/No:2.8
Focal Lens:0.99 mm
Dynamic Range:66dB
AGC:Auto
S/N Ration:34dB
Shutter Type:Electronic Shutter
Angle of View:60° ± 2°
Lens Construction:2 Plastic+IR Cut
Operating Temperature:-20° to +60°
Operating Humidity :30%-90%Rh
Video System Switch:NTSC/PAL
Power Input:DC 4.5V-5.5V
Power Consumption:190±5mA
Color:Clear
Frame Rate:NTSC: 30 fps,PAL: 25 fps
Dimension:140(L) x 30(W) x 150(H) mm
Weight:35g


  • Specification are subject to change without prior notice.
  • All CMOS series products are not compatible with RF wireless products
