OTP-711W Plug&Play H.264 wireless IP cameras View on iPhone/iPad and Android

Security Surveillance  » IP camera

diagram_ProductfeaturesBlock_ic711w

 Features

  • Plug & play by ID/password, no IP address or DNS settings.
  • H.264 video compression
  • Mega-pixel for up to 1280x800 resolution at 30 fps.
  • Two sensors/lens for day and night separately.
  • Two way audio.
  • SD card video recording with 5 seconds of pre-recording..
  • 802.11 n wireless with WEP and WPA/WPA2 security support.
  • WPS (WiFi Protected Setup) support.
  • Triple video streaming on PC, mobile and SD card recording.
  • Night mode control –support automatic, manual and scheduled modes.
  • Connect up to 20 users simultaneously
  • Bundle with free video management software CamView.
  • Push notification on iPhone/iPad and Android for motion and sound detection.
  • Email/ftp alarm message for motion and sound detection.
  • Event scheduling.
  • Video recording on NAS device.
  • Cloud storage on Dropbox.
  • Internal real time clock
  • Watchdog function to prevent system failure.



 Specifications:

Models Dual-lens Mega-pixel
Power DC 5V, 1.5A
Processors RISC CPU, hardware video processing and compression.
Network interface Ethernet 10BaseT/100BaseTX, Auto-MDIX, RJ-45
Wireless Interface IEEE 802.11n 90 - 150 Mbps
IEEE 802.11g 6 - 54 Mbps
IEEE 802.11b 1 - 11 Mbps
Transmit power:
14.5dBm typically @ 802.11g
17.5dBm typically @ 802.11b
Rx sensitivity: 54Mbps: Typical -73dBm @ 10% PER
11Mbps: Typical -86dBm @ 10% PER
Antenna gain: 0.1 dBi
Image sensor RGB Mega 1/4 inch CMOS
Day and night separate sensors
Automatic exposure control, automatic white balance, automatic gain control, automatic brightness control.
Light sensitivity 0.2 Lux ( IR LED off )
0 Lux (with 10 meters IR LED on)
Automatically turn on the IR LED on low light environment.
Lens 4.2 mm, F2.4, viewing angle: 62°, fixed iris.
focus range: 30 cm to infinity
Day and night separate lens
Buttons One reset button, to factory default settings
One WPS button for automatic WiFi setup
Indicators One LED for Internet connection status indication
One LED for Ethernet connection indication
One LED for SD card recording indication
Video compression H.264, baseline profile level 3.1
Video streaming Separate frame rate/resolution/bandwidth settings for PC and mobile.
Video settings Resolution: (WXGA)1280x800, 1024x768, VGA(640x480), QVGA(320x240) Bandwidth : 64k, 128k, 256k, 512k, 768k, 1M, 1.2M, 1.5M, 2M, 3M bps
Frame rate : 1~5, 10, 15, 20, 25, 30 fps
Audio Built-in microphone for audio monitoring
Built-in 0.5W speaker for alarm and half-duplex two-way audio
Audio compression: G.711
Security Web management username/password protection
Video display ID/password protection
WiFi WEP and WPA/WPA2 security mode
Installation, management and maintenance Plug & play by ID/password.
Video management software-CamView for video access and multi-camera management
Firmware upgrades via FTP
Web browsing Built-in web server for standard web browser access
Video display on IE browser
Video snapshot on any browser
Supported protocols IPv4, HTTP, TCP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, SNTP, FTP, DHCP, ARP, DNS, PPPoE, etc.

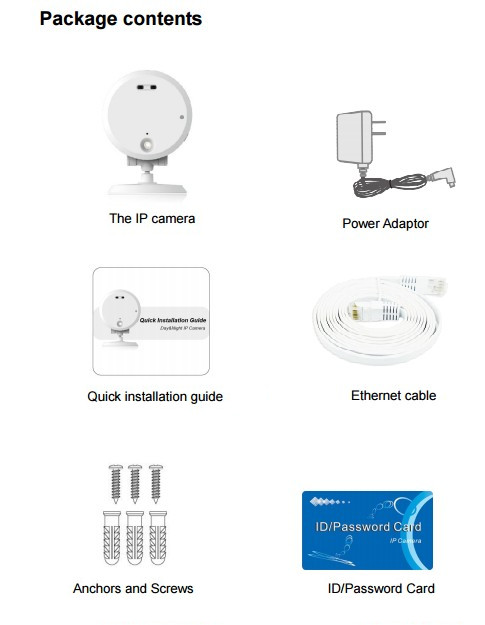

Accessories (included) Power adaptor, RJ45 Ethernet cable, quick installation guide,
ID/Password card.
Video management software Surveillance software for viewing and archiving up to 36 cameras
Users Up to 20 simultaneous unicast users (depends on video settings)
Alarm and event management Events triggered by motion and sound detection
Email/ftp alarm message
Push notification on iPhone/iPad and Android devices.
Dimensions (HxWxD) and weight 96 x 70 x 61 mm, bracket included
84 g, incl. camera bracket, excl. power adaptor
Approvals EMC - CE, FCC Part 15 Subpart B Class B Wireless RF - CE, FCC Part 15 Subpart C Power supply: CE, FCC, UL, EN 60950
Operating conditions 0-50
Humidity 20 – 80% RH (non-condensing)

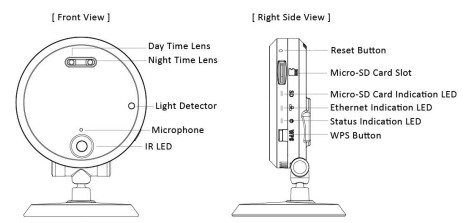

Componets of Mainboard:

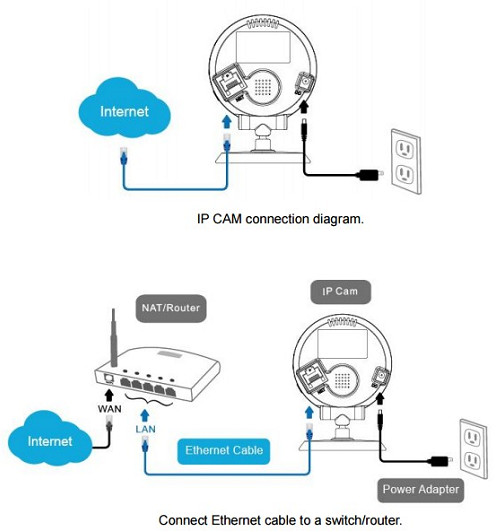

Internet connection:

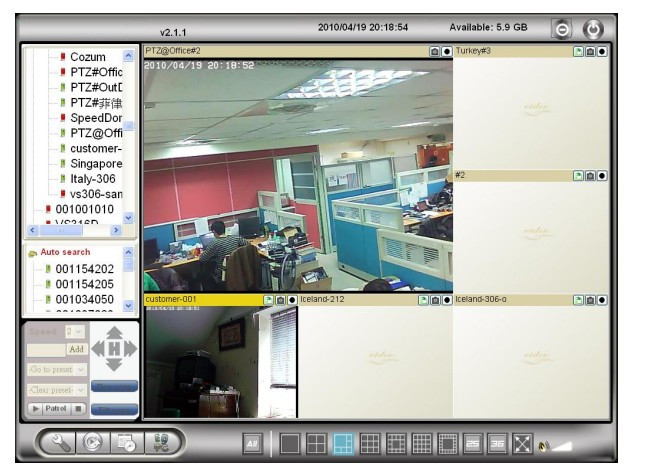

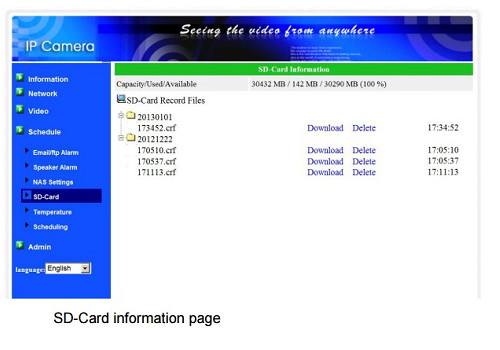

 Software Operation:
