Fearture:
1.STM advanced 32‐bit high‐performance MCU processor;
2.Support multiple functions such as vibration alarm and over‐speed alarm ;
3.Solar charging system, automatic cycle charging and discharging;
4.Support the electronic fence function;
5.SMS/call alarm can be sent to SOS number, the alarm will be uploaded to the platform at the same time ;
6.The terminal adopts industrial‐grade high‐stability GPRS module, built‐in GSM high‐sensitivity antenna;
7.supports TCP/IP data transmission, and supports domain name/IP address to connect to the server;
8.Built‐in memory chip supports offline data storage and supplementary transmission of blind area data ;
9.Built‐in 3‐axis acceleration sensor, integrated with precise acceleration algorithm;
10.High‐sensitivity GPS/BDS positioning module, anti‐jamming antenna, more stable satellite search signal;
11.Support AGPS fast positioning tracking, synchronous timing;
12.Support online remote upgrade and remote configuration of product parameters.
13.Three working modes for various scenarios.
14.Waterproof IP67
.jpg)
Specifications:
|
Function |
Description |
|
|
Power supply |
Battery powered |
|
|
Charging method |
Solar charging |
|
|
Working voltage range |
DC3.4V - 4.5V |
|
|
Working current |
4 V/ average 35 mA |
|
|
Sleep current |
4 V/ average 6 mA |
|
|
Standby current |
4 V / average 60uA |
|
|
Built-in battery capacity |
5000 mAh /20000 mAh (3.7V polymer battery ) |
|
|
Range of working temperature |
-20°C - 75°C |
|
|
Storage temperature range |
-30°C - 80°C |
|
|
Working Humidity Range |
10 %- 85 % RH non-condensing |
|
|
4G Chip model |
SIMCOM 7670C/SIMCOM 7670SA |
|
|
Communication frequency |
LTE/4G |
B1/B3/B5/B7/B8/B20 |
|
B1/B2/B3/B4/B5/B7/B8/B28/B66 |
||
|
SIM card |
Micro SIM card |
|
|
Communication antenna |
Built-in FPC antenna |
|
|
GPS Chip model |
ZKW AT6558D |
|
|
Positioning method |
BD +GPS |
|
|
Cold start time |
Average 32 seconds |
|
|
Hot start time |
Average 1 second |
|
|
Tracking Sensitivity |
-162 dBm |
|
|
positioning antenna |
Built-in antenna |
|
|
Antenna Specifications |
18mm*18mm*4mm |
|
|
GPS frequency band |
L1: 1575.42±1.023MHz |
|
|
Beidou frequency band |
B1: 1561.098±2.046MHz |
|
|
Number of satellite channels |
64 |
|
|
Positioning accuracy |
<10m (1σ) |
|
|
Timing accuracy |
<30ns (1σ) |
|
|
Speed measurement accuracy |
<0.1m/s (1σ) |
|
|
Maximum acceleration |
4g |
|
|
Maximum speed |
515m/s |
|
|
Maximum height |
18000m |
|
|

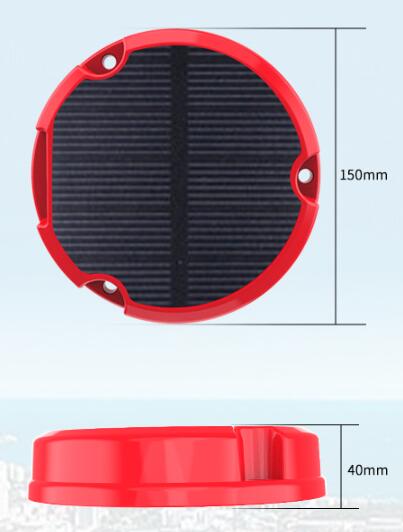

Host size |
150mm*150mm*40mm/ 180mm*180mm*40mm |
|
|
Shell material |
ABS plastic |
|
|
IP protection level |
IP67 |
|
|
Host weight |
650 grams/ 980 grams |
|
